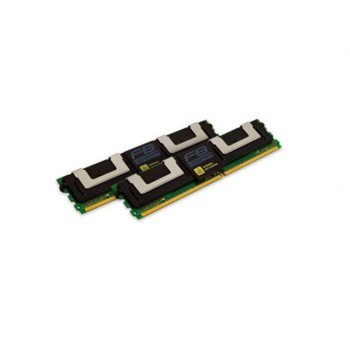

ValueRAM’s KVR667D2D4F5K2/16G is a kit of two 8GB (1024M x 72-bit) PC2-5300 CL5 SDRAM (Synchronous DRAM) “fully buffered” ECC “dual rank” memory modules. Total kit capacity 16GB (16,382MB). Each module is based on eighteen stacked 1024M x 4-bit (thirty-six 512M x 4-bit) 667MHz DDR2 FBGA components. Each module also includes an AMB device (Advanced Memory Buffer).
FBDIMM Module
240-pin
JEDEC Standard
R/C H or E
Memory Organization
2 rank of x4 devices
DDR2 DRAM Interface
SSTL_18
DDR2 Speed Grade
667 Mbps
CAS Latency
5-5-5
Module Bandwidth
5.3 GB/s
DRAM
VDD = VDDQ = 1.8V
AMB
VCC = VCCFBD = 1.5V
EEPROM
VDDSPD = 3.3V (typical)
Heat Spreader
Full DIMM Heat Spreader (FDHS)
PCB Height
30.35mm, double-side
