Maximum performance with 10 Times Faster Speed than Fast Ethernet

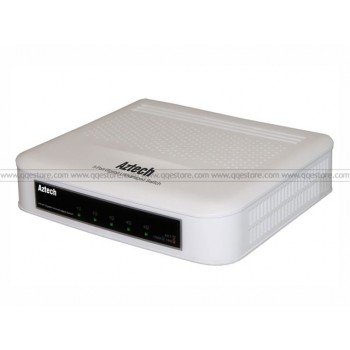

Aztech NS815 5-Port Gigabit Unmanaged Switch is ideally designed for SOHO and small workgroup networking connection with 5 10 BASE-T/ 100 BASE-TX/ 1000 BASE-T Gigabit Ethernet ports. It allows the connection of up to five separate devices into your network. Unlike an Ethernet hub, it won't split your connections. Each device connected to NS815 can tap into the speed up to a gigabit per second. It delivers 10 times faster speed than the fast Ethernet to maximize the performance, making the transfer of large files, such as graphic files and multimedia files instantly. By increasing the speed of your network server and backbone connections, it makes the desktop Gigabit enabled.
Power Savings by Cable Length
NS815 Green verified switches all ports support auto MDI/MDI-X cable detection and is able to detect the length of any Ethernet cable connected to them for adjustment of power usage accordingly. Shorter lengths require less power.
Easy to Use
It is simple and easy to install. Just plug and play, it eliminates networks bottleneck while giving users flexibility and scalability.
Power Savings by Cable Length
NS815 Green verified switches all ports support auto MDI/MDI-X cable detection and is able to detect the length of any Ethernet cable connected to them for adjustment of power usage accordingly. Shorter lengths require less power.
Easy to Use
It is simple and easy to install. Just plug and play, it eliminates networks bottleneck while giving users flexibility and scalability.
| Power | |
| Green | Power on |
| No light | Power off |
| Link/Act/Speed | |
| Green | When there is a secure connection (or link) to 1000Mbps Ethernet device at any of the ports. |
| Blinking green | When there is reception or transmission to 1000Mbps (i.e. Activity--Act) of data occurring at a port. |
| Amber | When there is a secure connection (or link) to 10/100Mbps Ethernet device at any of the ports. |
| Blinking amber | When there is reception or transmission to 10/100Mbps (i.e. Activity--Act) of data occurring at a port. |
| Ethernet - green | 1. Link down 2. Link up (cable length) : It only supports 1000 Mb. |
| Performance | |
| Wire speed on all ports and port options | Full-wire speed (full-duplex) operation on all ports |
| Forwarding Mode | Store and Forward |
| Port packet Filtering/ Forwarding Rate | 14,880 pps for 10M 148,809 pps for 100M, 1,488,095 pps for 1000M |
| MAC Address table | 2K |
| Packet Buffer | 1024KBytes (1Mbits) |
| Jumbo Frame | 9K |
| Class of Service | Support Four Priority Queues per port. |
| Port Functions | |
| 5 10BASE-T/ 100BASE-TX / 1000BASE-T Gigabit Ethernet ports | Compliant to following standards, 1. IEEE 802.3 10BASE-T 2. IEEE 802.3u compliance 3. IEEE 802.3ab compliance 4. Support Half/Full-Duplex operations at 10/100Mbps 5. Support Full-Duplex operations at 1000Mbps 6. IEEE 802.3x Flow Control support for Full Duplex 7. Support back pressure for Half-Duplex operation 8. IEEE 802.1P 9. CoS scheduling method: Strict mode (high queue rst) |
| Physical & Environmental | |
| Power Supply | AC-DC 5V/1A (Switching) |
| Dimension of chassis | 120mm(L) x 103.6mm(D) x 30.1mm(H) |
