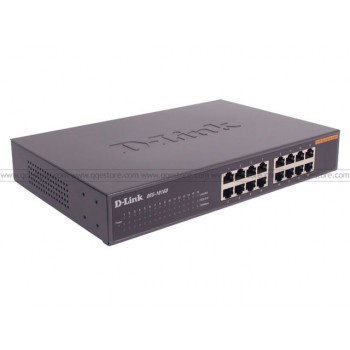

The DES-1016D is an unmanaged 10/100Mbps switch designed to enhance workgroup
performance while providing a high level of flexibility.
Powerful yet easy to use, this device allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response
time and satisfy heavy load demands.
16 Auto-sensing 10/100Mbps Ports
The switch comes with 16 10/100Mbps ports, allowing a workgroup to flexibly connect to Ethernet and Fast Ethernet and integrate.These intelligent ports detect the network speed and auto-negotiate between 100BASE-TX and 10BASE-T, as well as between full- and halfduplex.
Flow Control for Secure Transmission
In the fast 200Mbps full-duplex mode, the switch's embedded flow control provides a means to protect users against possible data loss during transmission on the network.
When connected to a LAN adapter (server PC) that supports flow control, the switch sends signals to the server regarding the switch's buffer overrun during peak usage periods.
The server then delays transmission until the switch is ready again to accept new data.
Easy Expansion
An MDI uplink port supporting 10/100Mbps connection is provided, allowing the workgroup to easily expand.
2 switches can be cascaded together through this MDI uplink to increase the port density.
Running at 200Mbps full-duplex speed, this port provides a fast switch-to-switch dedicated bandwidth.
Workgroup Plug-and-Play
With 16 plug-and-play ports, the switch is a perfect choice for workgroups to upgrade performance in a client/server environment.
The ports can be connected to servers in full-duplex, or to hubs in half-duplex.
Desktop Power
With low-cost connection per-port, the switch can also be set up for direct connection from the PCs.
This relieves data bottleneck by giving each workstation a dedicated bandwidth on the network.
Products Features
16 10/100Mbps ports
MDI uplink port for easy expansion
All ports support full/half-duplex
Dynamic buffer allocation for each port
Auto-learning of network configuration
IEEE 802.3x standard flow control for protection against data loss
Secure store-and-forward switching scheme
Auto-correction of reverse twisted-pair polarity Compact desktop size
Powerful yet easy to use, this device allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response
time and satisfy heavy load demands.
16 Auto-sensing 10/100Mbps Ports
The switch comes with 16 10/100Mbps ports, allowing a workgroup to flexibly connect to Ethernet and Fast Ethernet and integrate.These intelligent ports detect the network speed and auto-negotiate between 100BASE-TX and 10BASE-T, as well as between full- and halfduplex.
Flow Control for Secure Transmission
In the fast 200Mbps full-duplex mode, the switch's embedded flow control provides a means to protect users against possible data loss during transmission on the network.
When connected to a LAN adapter (server PC) that supports flow control, the switch sends signals to the server regarding the switch's buffer overrun during peak usage periods.
The server then delays transmission until the switch is ready again to accept new data.
Easy Expansion
An MDI uplink port supporting 10/100Mbps connection is provided, allowing the workgroup to easily expand.
2 switches can be cascaded together through this MDI uplink to increase the port density.
Running at 200Mbps full-duplex speed, this port provides a fast switch-to-switch dedicated bandwidth.
Workgroup Plug-and-Play
With 16 plug-and-play ports, the switch is a perfect choice for workgroups to upgrade performance in a client/server environment.
The ports can be connected to servers in full-duplex, or to hubs in half-duplex.
Desktop Power
With low-cost connection per-port, the switch can also be set up for direct connection from the PCs.
This relieves data bottleneck by giving each workstation a dedicated bandwidth on the network.
Products Features
| General | |
| Standards | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet ANSI/IEEE 802.3 NWay auto-negotiation |
| Protocol | CSMA/CD |
| Data Transfer Rates | |
| Ethernet: | 10Mbps (half-duplex) 20Mbps (full-duplex) |
| Fast Ethernet: | 100Mbps (half-duplex) 200Mbps (full-duplex) |
| Topology | Star |
| Network Cables | 10BASE-T: 2-pair UTP Cat. 3 (100 m) 4-pair UTP Cat. 4, 5 (100 m) EIA/TIA-568 150-ohm screened twisted-pair (STP) (100 m) 100BASE-TX: 4-pair UTP Cat. 5 (100 m) EIA/TIA-568B 150-ohm screened twisted-pair (STP) (100 m) |
| Number of Ports | 10/100Mbps port x 16 |
| Media Interface Exchange | MDI RJ-45 x 1 (shared with 1 10/100Mbps port) |
| Twisted-pair Rx Reverse Polarity | Auto-correction |
| LED Report | |
| Per device | Power |
| Per port | 10/100Mbps speed indicator Link/Activity |
| Performance | |
| Transmission Method | Store-and-forward |
| Filtering Address Table | 8K entries per device |
| MAC Address Learning | - Automatic update |
| Packet Filtering Rate | - 10BASE-T: 14,880 pps per port (half-duplex) - 100BASE-TX: 148,800 pps per port (half-duplex) |
| Packet Forwarding Rates | - 10BASE-T: 14,800 pps per port (half-duplex) - 100BASE-TX: 148,800 pps per port (half-duplex) |
| RAM Buffer | 2MB per device |
| Physical & Environmental | |
| AC Input | 100 - 240 VAC, 50/60 Hz Internal universal power supply |
| Power Consumption | 24 watts (max.) |
