D-Link DGS-1008A 8-Port Gigabit Desktop Switch

SKU: DGS-1008A

Availability: In stock

$36.00

1 Year 2 Year 3 Year 4 Year 5 Year
$3.00
per month
$1.50
per month
$1.00
per month
$0.75
per month
$0.60
per month
Available for BIBD AT-Tamwil and Baiduri
  • Available for any total purchase of $500.00 and above.
  • Not all items listed online can be purchased by Bank Loan.
  • Exclude normal bank charges, processing and service fee.

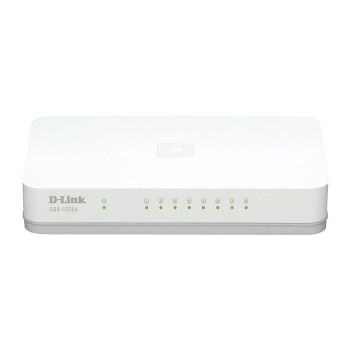

8-Port Gigabit Desktop Switch.
The D-Link DGS-1008A is an 8-port Gigabit Switch that delivers power, performance, and reliability in one cost-effective, space-saving design. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. It also features diagnostic LEDs which display status and activity, allowing you to quickly detect and correct problems on the network.

Power Savings by Cable Length.
D-Link Green switches have the ability to analyze the length of any Ethernet cable connected to them for adjustment of power usage accordingly. Shorter lengths require less power.

Overall Power Savings Per Day.
For a traditional switch, power consumption remains constant even when the ports are not in use. In a standard workday scenario where PCs are used for 10 hours a day and powered off 14 hours a day, and connected to the switch using 20 meter cables, D-Link Green Technology can save up to 27%* power used for each system.

Power-Packed.
The D-Link DGS-1008A Gigabit Switch features a non-blocking switching architecture that filters and forwards packets at full wire-speed for maximum throughput. An 8,000 MAC address table provides scalability for even the largest networks.

Easy to Use.
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

General Eight 10/100/1000 Gigabit LAN ports
Advanced Features Green Ethernet
16 Gbps switching fabric
Auto MDI/MDIX crossover for all ports
Secure store-and-forward switching scheme
Full/half-duplex for Ethernet/Fast Ethernet speeds
IEEE 802.3x Flow Control
Supports 9,216 Byte Jumbo Frames
Supports IEEE 802.1p QoS (4 Queues, Strict Mode)
Supports Cable Diagnostics Function
Standards IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x Flow Control
IEEE 802.3az Energy-Efficient Ethernet (EEE)
Protocol CSMA/CD
Data Transfer Rates Ethernet:
10 Mbps (half duplex)
20 Mbps (full duplex)
Fast Ethernet:
100 Mbps (half duplex)
200 Mbps (full duplex)
Gigabit Ethernet:
2000 Mbps (full duplex)
Transmission Method Store-and-forward
MAC Address Table 8K
MAC Address Learning Automatic Update
Packet Filtering/Forwarding Rates Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
Gigabit Ethernet: 1,488,000 pps per port
RAM Buffer 128 KB per device
LED Indicators Per port: Link/Activity/Speed
Per device: Power
Media Interface Exchange Auto MDI/MDIX adjustment for all ports
Dimensions 144 x 84 x 34 mm (5.8 x 3.4 x 1.4 inches)
Weight 330 grams (0.73 lbs)
Power 5 V/1 A Power Adapter
Power Consumption Power On (Standby): DC input: 0.59 watts, AC input: 1.5 watts
Maximum: DC input: 3.48 watts, AC input: 5.4 watts
Temperature Operating: 0 to 40 °C (32 to 104 °F)
Storage: -10 to 70 °C (14 to 158 °F)
Humidity Operating: 10% to 90% non-condensing
Storage: 5% to 90% non-condensing
MTBF 522,270 hours
Certifications CE class B, FCC class B, ICES-003 Class B, VCCI class B, C-Tick, cUL, CB, LVD
