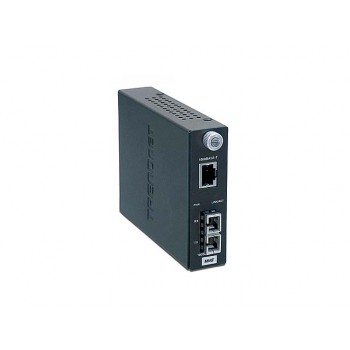

Intelligent 1000Base-T to 1000Base-SX Multi-Mode SC Fiber Converter.
The TFC-1000MSC Intelligent Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Multi Mode SC-Type fiber converter that supports SNMP and spans distances up to 550m. Ports include 1 x 1000Base-T (RJ-45) port and 1 x 1000Base-SX (SC-Type) port.
Features:
SC-type multi-mode fiber port connects over distances of up to 550m
1000Base-T Gigabit copper port supports Full-Duplex mode
Supports port level SNMP management
Functions as a stand alone converter or with the TFC-1600 fiber chassis
The TFC-1000MSC Intelligent Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Multi Mode SC-Type fiber converter that supports SNMP and spans distances up to 550m. Ports include 1 x 1000Base-T (RJ-45) port and 1 x 1000Base-SX (SC-Type) port.
Features:
| Standards | IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX |
| Supported Frame Size | Standard Ethernet up to 10Kbytes |
| Network Media | 1000Base-TX: Cat. 6 EIA/TIA-568 100-ohm UPT/STP, up to 100m 1000Base-SX: Multi-mode fiber optic cable 50/125 µm, up to 550m |
| Protocol | CSMA/CD |
| Ports | 1 x 1000Base-T 1 x 1000Base-SX (SC-type) |
| Dip Switch | Fiber (forced/auto-negotation) LLR (enable/disable) |
| Transfer Rate | 2000Mbps (full-duplex) |
| Media | MMF |
| Power | 7.5V DC, 1A external power adapter |
| Power Consumption | 2.7 Watts |
| Certification | FCC, CE |
| Temperature | Operating: 0 Degree ~ 40 Degree C (32 Degree ~ 104 Degree F) Storage: -25 Degree ~ 70 Degree C (-13 Degree ~ 158 Degree F) |
| Humidity | Max. 90 Percent (non-condensing) |
| Dimension | 120 x 88 x 25mm |
| Weight | 354g |
