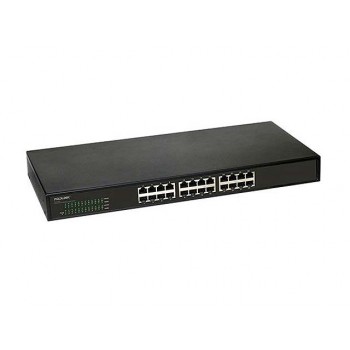

24-Port 10/100/1000Mbps Gigabit Ethernet Switch.
The PROLiNK® PSG2420M 24-Port 10/100/1000Mbps Gigabit Ethernet Switch is a rack-mountable switching hub that allows you to connect up to 24 devices at a time. The sturdily built device comes with a robust metal housing that provides optimised workspace efficiency. Each individual port is able to receive and transmit traffic at the full dedicated wire speed. Operating on a Store-and-Forward switching method, the PSG2420M seeks to eliminate bad data frames from the network; ensuring a high level of error-free network traffic. The PROLiNK PSG2420 offers a cost-effective solution for SOHO users, internet cafes, campus LAN environments and small/medium businesses.
Compatibility.
Supports Auto-Negotiation RJ45 ports (Auto MDI/ MDIX)
Store-&-Forward Switching Method.
Eliminates bad data packets from the network
Excellent Performance.
Supports 1000Mbps in Full-Duplex mode
Rack Mountable Design.
Robust metal frame, can be placed on a desktop and or mounted on a 19” rack mount
Jumbo Frame Support.
Allows a much larger frame size of up to 9261 Bytes to be sent over a network
The PROLiNK® PSG2420M 24-Port 10/100/1000Mbps Gigabit Ethernet Switch is a rack-mountable switching hub that allows you to connect up to 24 devices at a time. The sturdily built device comes with a robust metal housing that provides optimised workspace efficiency. Each individual port is able to receive and transmit traffic at the full dedicated wire speed. Operating on a Store-and-Forward switching method, the PSG2420M seeks to eliminate bad data frames from the network; ensuring a high level of error-free network traffic. The PROLiNK PSG2420 offers a cost-effective solution for SOHO users, internet cafes, campus LAN environments and small/medium businesses.
Compatibility.
Store-&-Forward Switching Method.
Excellent Performance.
Rack Mountable Design.
Jumbo Frame Support.
| Standards | IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3az |
| Number of Ports | 24 x 10/100/1000Mbps Auto Negotiation ports |
| Cable Type | •10Base-T: |
| LED Indicator | •Link/Act: Green, 1000M: Green •Other: Power (Green) |
| Switching Capacity | 52G |
| MAC Address List | Automatically learning, automatically Update 16K Table |
| Frame Filtering & Forward Rate | •10Mbps: 14880PPS; •100Mbps: 148800PPS •1000Mbps: 1488000PPS |
| OS Supported | Windows XP/Vista/7/8, Mac, Linux |
| Dimensions | 440x 205 x 44mm (19” metal case) (L x W x H) |
| Weight | 2.44KG |
| Power Supply | Input: 100-240VAC 50-60Hz |
| Power Consumption | 20W (MAX) |
| Environment | •Operating Temperature: 0 °C ~ 40°C •Storage Temperature: -10°C ~ 70°C •Operating Humidity: 10%~90% non-condensing •Storage Humidity: 5% ~ 90% RH, non-condensing |
| Package Content | •1 x 24-Port 10/100/1000Mbps Gigabit Ethernet Switch •1 x Power Cord •2 x Rack-mount Bracket •8 x Screw •4 x Rubber Feet •1 x User Manual |
