Hardware Features |
Interface |
4 10/100/1000Mbps LAN Ports
1 10/100/1000Mbps WAN Port
1 USB 2.0 Port |
Button |
Quick Setup Security Button
Reset Button |
External Power Supply |
12VDC / 1.5A |
Wireless Standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Antenna |
3dBi*3 Detachable Omni Directional (RP-SMA) |
Dimensions ( W x D x H ) |
7.9 x 5.5 x 1.2 in. (200 x 140 x 28mm) |
Wireless Features |
Frequency |
2.4-2.4835GHz |
Signal Rate |
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic) |
EIRP |
<20dBm(EIRP) |
Reception Sensitivity |
270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER |
Wireless Functions |
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
Wireless |
64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK |
Software Features |
WAN Type |
Dynamic IP/Static IP/PPPoE/
PPTP(Dual Access)/L2TP(Dual Access)/BigPond |
DHCP |
Server, Client, DHCP Client List,
Address Reservation |
Quality of Service |
WMM, Bandwidth Control |
Port Forwarding |
Virtual Server,Port Triggering, UPnP, DMZ |
Dynamic DNS |
DynDns, Comexe, NO-IP |
VPN Pass-Through |
PPTP, L2TP, IPSec (ESP Head) |
Access Control |
Parental Control, Local Management Control, Host List, Access
Schedule, Rule Management |
Firewall Security |
DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding |
Management |
Access Control
Local Management
Remote Management |
Others |
Certification |
CE, FCC, RoHS |
Package Contents |

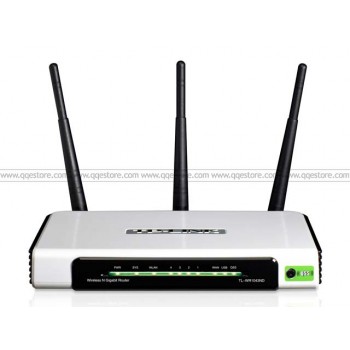

TL-WR1043ND
3 detachable Omni directional antennas
Power supply unit
Resource CD
Quick Installation Guide |
System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7,
MAC OS, NetWare, UNIX or Linux. |
Environment |
Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
