Challenge The Limit.

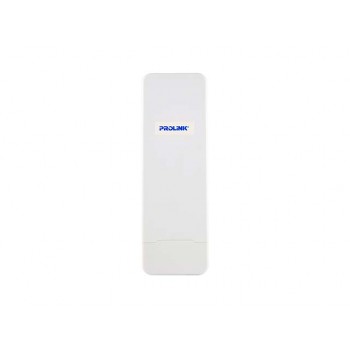

The PROLiNK PHA1010 2.4GHz Super WiFi 300Mbps AP/CPE/Bridge/Repeater with Smart Antenna Technology is designed as an essential component in the PROLiNK Super WiFi system to extend outdoor WiFi coverage into indoor areas for broadband connectivity. The PHA1010 employs patented smart signal processing algorithms and antenna design to increase WiFi signal strength (transmit and receive) as well as the client’s throughput. With its powerful built-in antennas, the PHA1010 WiFi CPE/AP can be used to improve the link budget by as much as 16 dB.
High Performance Antenna with 20 dB Front-to-Back Ratio
Reduces the chance of picking up unwanted signals, which is on average 5dB better than conventional directional transmission.
8-level LED Signal Indicator.
8-level LED for easy alignment in the strongest signal direction.
Suitable for Outdoor Conditions.
One-piece weatherproof chassis compliant to IP55 standard for direct outdoor installation.
Full Set of Networking and Management Features.
Includes per client/VAP based bandwidth control, remote web-based management and client association status.
The PROLiNK PHA1010 2.4GHz Super WiFi 300Mbps AP/CPE/Bridge/Repeater with Smart Antenna Technology is designed as an essential component in the PROLiNK Super WiFi system to extend outdoor WiFi coverage into indoor areas for broadband connectivity. The PHA1010 employs patented smart signal processing algorithms and antenna design to increase WiFi signal strength (transmit and receive) as well as the client’s throughput. With its powerful built-in antennas, the PHA1010 WiFi CPE/AP can be used to improve the link budget by as much as 16 dB.
High Performance Antenna with 20 dB Front-to-Back Ratio
8-level LED Signal Indicator.
Suitable for Outdoor Conditions.
Full Set of Networking and Management Features.
| Operating Mode | AP/CPE/Bridge/Repeater |
| Standard | IEEE 802.11b/g/n |
| Operating Frequency | 2.412 – 2.472 GHz (Ch 1-13) |
| Transmit Power | 29 dBm (Max.) 26 dBm (Per Chain) |
| Antenna | Built-in 2.4 GHz Antenna 10 dBi Dual Slant ±45° Patch 3-dB Horizontal Beamwidth 70° 3-dB Vertical Beamwidth 30° Front-to-back Ratio -20 dB (Max.) |
| Networking | 8 Multiple SSID/ Virtual AP Bandwidth Control/ VAP/ Client DHCP Client/ Server Dynamic NAT Port Forward Preferred AP Association Auto ACK Timeout Calculation by Distance Input Web Based Antenna Alignment Tool 2 User Access Levels for Web Login (3 Levels) WMM |
| Security | Open system, Shared key, WPA/ WPA-PSK; WPA2/ WPA2-PSK; 802.1x, PEAP WEP, TKIP, AES MAC based Access Control SSID Suppression |
| Management | Web-based Administration Tool Web-based Antenna Alignment Tool Telnet Management (SSH) Remote Firmware Upgrade (HTTP) SNMP v2c WiFi Client Association Status |
| Dimension | 220 x 80 x 24 mm (excluding mounting) |
| Weight | 0.4 kg |
| Network Interface | 10/100 Mbps Ethernet Port |
| Mounting | Desktop, Pole, Wall or Window-mounted |
| LED Display | Main Power Status Ethernet Status 8-level Signal Strength (User configurable) |
| Power Supply | Power Source PoE Injector (18 VDC) Power Consumption 6 W (Typical) / 8W (Max.) |
| Operating Temperature | -20 °C to +55 °C |
| Storage Temperature | -40 °C to +80 °C |
| Humidity | 5 – 95% (Non-condensing) |
| Wind Loading | 90 mph (Operational); 125 mph (Survival) |
