Functions |
Print, copy, scan, fax |
Printer Page Yield |
Introductory cartridges included; yields ~500 color composite (C/Y/M) and ~500 black pages based on ISO/IEC 19798 and continuous printing. Replacement cartridge average composite (C/Y/M) declared yield ~1000 and average black yield ~1300 pages based on ISO/IEC 19798 and continuous printing. Actual yields vary considerably based on images printed and other factors. Imaging drum yield is ~14,000 pages when printing in black; ~7000 pages when printing in color; ~9000 to 10,000 pages when printing in average customer conditions. Pages may vary based on customer printing conditions and usage. |
First page out (ready) black |
As fast as 16 sec |
First page out (ready) color |
As fast as 27.5 sec |
Resolution (black) |
Up to 600 x 600 dpi quality (2400 dpi effective output with ImageREt 2400) |
Resolution (color) |
Up to 600 x 600 dpi quality (2400 dpi effective output with ImageREt 2400) |
Resolution technology |
HP ImageREt 2400 |
Monthly duty cycle |
Up to 20,000 pages
Duty cycle is defined as the maximum number of pages per month of imaged output. This value provides a comparison of product robustness in relation to other HP LaserJet or HP Color LaserJet devices, and enables appropriate deployment of printers and MFPs to satisfy the demands of connected individuals or groups. |
Recommended monthly page volume |
250 to 950
HP recommends that the number of pages per month of imaged output be within the stated range for optimum device performance, based on factors including supplies replacement intervals and device life over an extended warranty period. |
Print Technology |
Laser |
Display |
3.0-in (7.62-cm) touchscreen CGD (Color Graphics Display) |
Processor speed |
600 MHz |
Number of print cartridges |
4 (1 each black, cyan, yellow, magenta), 1 imaging drum |
Replacement cartridges |
HP 130A Black LaserJet Toner Cartridge (~1300 yield) CF350A; HP 130A Cyan LaserJet Toner Cartridge (~1000 yield) CF351A; HP 130A Yellow LaserJet Toner Cartridge (~1000 yield) CF352A; HP 130A Magenta LaserJet Toner Cartridge (~1000 yield) CF353A; HP 126A LaserJet Imaging Drum CE314A |
Print languages |
PCLm/PCLmS |
Automatic paper sensor |
No |
Paper trays, standard |
1 |
Paper trays, maximum |
1 |
Mobile Printing Capability |
HP ePrint, Wireless direct printing, Apple AirPrint |
Connectivity, standard |
Hi-Speed USB 2.0 port; built-in Fast Ethernet 10/100Base-TX network port; Wireless 802.11b/g/n |
Network ready |
Standard (built-in Fast Ethernet, WiFi 802.11 b/g/n) |
Ports |
1 Hi-Speed USB 2.0; 1 Fast Ethernet 10/100Base-TX; 1 Wireless 802.11b/g/n |
Security management |
Password-protected network embedded Web server; 802.11: WEP, WPA, WPA2; SNMPv1 community password change |
Minimum system requirements |
Mac OSX v 10.6; PowerPC G4, G5, or Intel® Core™ Processor; 500 MB available hard disk space; CD-ROM/DVD-ROM or Internet; USB or Network port
Windows 8 (32/64-bit), Windows 7 (32/64-bit), Windows Vista (32/64-bit), Windows XP 32-bit (SP2 or higher); Minimum hard disk space required (CD and Web Package) 200 MB; Minimum hard disk space required 400 MB; Minimum RAM installed 512MB CD-ROM/DVD or internet, USB or Network port |
Compatible operating systems |
Full software installs supported on: Windows 10 (32-bit/64-bit), Windows 8 (32-bit/64-bit), Windows 7 (32-bit/64-bit), Windows Vista (32-bit/64-bit), Windows XP (32-bit) (SP2 or higher); Driver only installs supported on: Windows 2012; Windows Server 2008 (32-bit/64-bit), Windows Server 2008 R2 (x64) (SP1), Windows Server 2008 (Standard Edition), Windows Server 2008 (Enterprise Edition), Windows Server 2003 (32-bit/64-bit) (SP1 or higher), Windows XP (64-bit) (SP2 or higher); Mac OS X v 10.6.8 or higher; Linux |
Memory, standard |
128 MB |
Memory, maximum |
128 MB |
Printer management |
Windows: HP Device Toolbox, Status Alerts (default install); Mac: HP Utility |
Print speed, color (draft) |
Measured using ISO/IEC 24734, excludes first set of test documents. For more information see hp.com/products1/ISO/MMDPP/index.html. Exact speed varies depending on the system configuration, software application, driver, and document complexity. |
Supported network protocols |
Via built-in networking solution: TCP/IP, IPv4, IPv6; Print: LPD (raw queue support only); Discovery: SLP, Bonjour, Web Services Discovery; IP Config: IPv4 (BootP, DHCP, AutoIP, Manual), IPv6 (Stateless Link-Local and via Router, Statefull via DHCPv6); Management: SNMPv1, HTTP; HP ePrint |
Hard disk |
No |
Paper handling input, standard |
150-sheet input tray |
Paper handling output, standard |
50-sheet face-down bin |
Duplex printing |
Manual (driver support provided) |
Envelope input capacity |
Up to 10 envelopes |
Finished output handling |
Sheetfed |
Media sizes supported |
A4; A5; A6; B5; 16k; 10 x 15 cm; post cards (JIS single and double); envelopes (DL, C5, B5) |
Media sizes, custom |
3 x 5 to 8.5 x 14 in |
Media types |
Paper (bond, brochure, colored, glossy, letterhead, photo, plain, preprinted, prepunched, recycled, rough), postcards, transparencies, labels, envelopes |
Supported media weight |
16 to 58 lb (bond) |
Media weights by paper path |
Cut sheet paper: 60 to 120 g/m² (Stretch Goal:-163g/m²); Envelopes: 60 to 90 g/m²; Post Cards: 135 to 176 g/m² (36 to 47 #); HP glossy media: 130 to 220 g/m² |
Power |
Input voltage: 110 to 127 VAC (+/- 10%), 60 Hz (+/- 2 Hz); Input Voltage: 220 to 240 VAC (+/- 10%), 50/60 Hz (+/- 2 Hz) (Not dual voltage, power supply varies by part number with # Option code identifier). |
Print speed, black (normal) |
Up to 17 ppm |
Power consumption |
Values subject to change. Power numbers are the highest values measured using all standard voltages. See hp.com/support for current information. Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer and void the product warranty.
290 watts (Printing), 200 watts (Copying), 9.2 watts (Ready), 1.3 watts (Sleep/Auto-Off), 0.2 watts (Manual Off) |
Energy efficiency |
ENERGY STAR qualified |
Operating temperature range |
50 to 86ºF |
Operating humidity range |
30 to 70% RH |
Dimensions |
16.7 x 16.7 x 13 in |
Weight |
35 lb |
What's in the box |

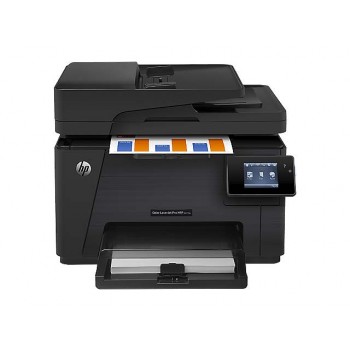

HP LaserJet Pro Color MFP M177fw; Preinstalled introductory HP LaserJet Black, Cyan, Yellow, Magenta print cartridges (~500 pages); Installation guide; Getting Started guide; User's Guide; Support flyer; Warranty guide; Printer software and documentation on CD; Power cord; USB cable; Phone cord |
