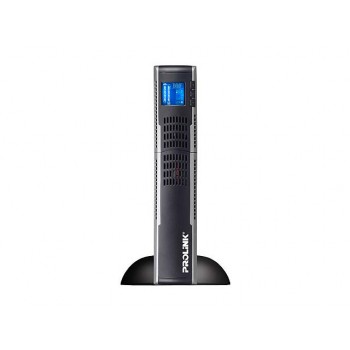

Prolink 3KVA/2700W Online Master Series UPS PRO803RS

SKU: PRO803RS

Availability: In stock

$1,399.00

1 Year 2 Year 3 Year 4 Year 5 Year
$116.58
per month
$58.29
per month
$38.86
per month
$29.15
per month
$23.32
per month
Available for BIBD AT-Tamwil and Baiduri
  • Available for any total purchase of $500.00 and above.
  • Not all items listed online can be purchased by Bank Loan.
  • Exclude normal bank charges, processing and service fee.
Prolink Online Master Series 1KVA ~ 10KVA.

Master Series (1P/1P) – 2-in-1 Rack/Tower is a true on-line double-conversion technology single-phase UPS system with 2U universal-mount case. It can be easily installed as a poor-standing tower or with a 19-inch rackmount bracket. The Master Series was designed with a high density output power factor of 0.9 to provide higher performance and efficiency to critical applications such as sensitive networks, small computer centers, servers and telecomapplications. It is available in capacities from 1KVA to 10KVA with wide input voltage range and high accuracy output voltage to protect against the outages, disturbances and spikes.

Master Series (1P/1P) - 2-in-1 Rack/Tower has been designed with a hot-swappable battery to ensure clean anduninterruptible power to protected equipment during battery replacement. A high battery charging current and battery extension assembly is available for long run applications. Parallel redundancy which will back up the load in the event of critical component failure is available for the 6kVA and 10kVA models. Front panel digital display can be easily adjusted through LCD setting to suit the installation format, whether it is left vertically standing or at wall mounted.

Features:
  • True Double-Conversion Online UPS.
  • Rack or Tower design.
  • Wide input voltage range (110~300VAC).
  • Input Power Factor correction 0.99.
  • Output Power Factor 0.90.
  • 50/60Hz frequency converter mode.
  • Hot-Swappable battery design.
  • Emergency Power Off (EPO) function.
  • ECO Mode Operation for energy saving.
  • General Compatible.
  • Charger capacity expansion to 8A for long-run models.
  • SNMP+USB+RS232 multiple communications.
  • Smart battery charger design for optimized battery performance.
  • Selectable output voltage via LCD panel.

  • Model PRO803RS/ RL
    Capacity 3000 VA / 2700 W
    Nominal Voltage 208/ 220/ 230/ 240VAC
    Voltage Range 120Vac <Vin<290Vac @ 50% LOAD
    170Vac <Vin<300Vac @ 100% LOAD
    Nominal Frequency 50 or 60Hz
    Frequency Range 40~70Hz (Auto Sensing)
    Power Factor = 0.99
    Output Voltage 200 / 208 / 220 / 230 / 240VAC
    Static Regulation ±1%
    Frequency 50Hz or 60Hz auto selection or selectable
    Frequency Range 47 ~ 53 Hz or 57 ~ 63 Hz
    Power Factor 0.9
    Current Crest Ratio 3:1
    Voltage Distortion Linear Load = 2% THD
    Non-Linear Load = 6% THD
    Waveform Pure Sinewave
    AC Mode Up tp 90%
    Battery Type: Valve regulated Lead Acid battery (Maintenance free batteries)
    Capacity: 7AH
    Recharge Time (Typical): 4 hours recover to 90% capacity
    Charging Current: 1.0 A (max)
    LCD Panel Display Input / Output Voltage, Load Level, Batt Level, UPS Status, Fault Conditions
    Overload 100% < Load < 110% = Overload warning only (No shutdown)
    100% < Load < 130% = 30 sec
    > 130% = 2.0 sec
    Dimension (mm) D×W×H 600 × 438 × 88
    Weight (kgs) 28
    Operation Humidity < 90% non-condensing
    Ambient Temperature 0°C - +40°C
    Noise Level = 50dBA @ 1 Meter
    Regulations Safety: EN62040-1-1; EMI62040-2; EN62040-3
    System Requirements Support Windows 2000/ 2003/ XP/ Vista/ 2008/ 7, Linux, Unix and MAC
