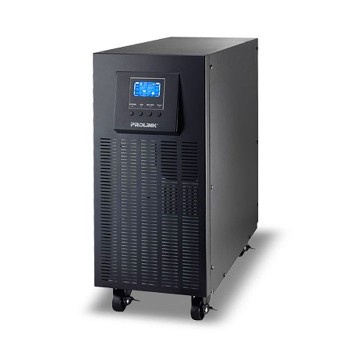

UPS Master Series (1P/1P) - Tower Pro810ES 10kVA.
The Master Series (1P/1P) - Tower is a true on-line double-conversion technology single-phase UPS system which provides clean, high level quality power for critical devices such as small computer centers, servers, telecom applications and industrial applications. It is available from 1KVA to 10KVA capacities with wide input voltage range and high accuracy output voltage to protect against the outages, disturbances and spikes. The Master Series (1P/1P) - Tower is designed with a smart battery charger design to optimize battery performance. High voltage battery chargers and battery extension assembly is available for the long run time applications. Internal bypass to assure continuous power to critical devices during UPS maintenance and parallel redundancy which will back up the load in the event of critical component failure is available for the 6kVA and 10kVA models.
Features:
True on-line double-conversion technology
Single phase input and single phase output system
Digital signal processing (DSP) technology control
RS-232 & USB port multiple communications
Galvanic isolation design available to provide adequate isolation
The Master Series (1P/1P) - Tower is a true on-line double-conversion technology single-phase UPS system which provides clean, high level quality power for critical devices such as small computer centers, servers, telecom applications and industrial applications. It is available from 1KVA to 10KVA capacities with wide input voltage range and high accuracy output voltage to protect against the outages, disturbances and spikes. The Master Series (1P/1P) - Tower is designed with a smart battery charger design to optimize battery performance. High voltage battery chargers and battery extension assembly is available for the long run time applications. Internal bypass to assure continuous power to critical devices during UPS maintenance and parallel redundancy which will back up the load in the event of critical component failure is available for the 6kVA and 10kVA models.
Features:
| GENERAL | |
| Model | PRO802ES |
| Phase | Single Phase In / Single Phase Out |
| Capacity | 10000 VA / 8000W |
| INPUT | |
| Nominal Voltage | 208/220/230/240VAC |
| Input Voltage Range | 176VAC ±3% @ 100% Load 110VAC ±3% @ 50% Load |
| Frequency Range | 46~54Hz or 56~64Hz |
| Power Factor | > 0.99 @ Nominall Voltage (100% load) |
| THDI | < 5% @ nominal input voltage |
| OUTPUT | |
| Output Voltage | 208/220/230/240VAC |
| Voltage Regulation | ± 1 % |
| Frequency Range (Synchronized Range) | 46~54Hz or 56~64Hz |
| Frequency Range (Batt. Mode) | 50Hz ±0.1Hz or 60Hz ±0.1Hz |
| Current Crest Ratio | 3:1 |
| Harmonic Distortion | < 3 % THD (Linear Load) < 6 % THD (Non-linear Load) |
| AC Mode to Battery Mode | Zero |
| Inverter to Bypass | 4 ms (Typical) |
| Waveform (Batt. Mode) | Pure Sinewave |
| EFFICIENCY | |
| AC Mode | 89% |
| ECO Mode | 88% |
| Battery Mode | 97% |
| BATTERY | |
| Battery Type | 12 V / 9 Ah |
| Numbers | 20 |
| Typical Recharge Time | 9 Hours Recover to 90% Capacity |
| Charging Current (max.) | 4 A |
| Charging Voltage | 273.0VDC ±1% |
| INDICATORS | |
| LCD | UPS Status, Load Level, Battery Level, Input/Output Voltage, Discharge Timer, Fault Conditions |
| ALARM | |
| Battery Mode | Sounding every 4 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding twice every seconds |
| Fault | Continuously sounding |
| PHYSICAL | |
| Dimension D x W x H (mm) | 592×250×576 |
| Weight (Kgs) | 83 |
| ENVIRONMENT | |
| Humidity | 20-90% Relative Humidity @ 0~40°C (Non-Condensing) |
| Noise Level | Less than 58dB @ 1 Meter |
| MANAGEMENT | |
| Smart RS-232 / USB | Support Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix and MAC |
| Optional SNMP | Power management from SNMP manager and web browser |
